Surveillance System (CCTV Camera, IP Camera, DVR, NVR, Speed Dome)
IP Camera
|
|
 |
 |
 |
Smart Box IP Camera
(Model : ZHB230MPA / ZHB230MPA D/N) |
Smart Box IP Camera
(Model : ZHB-210P) |
Smart Cube IP Camera
(Model : ZHC-100M) |
|
|
|
 |
 |
 |
|
 |
|
|
|
|
|
Smart Dome IP Camera
(Model : ZHFD-210T0/T1/T2) |
|
|
|
|
|
 |
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com |
|
|
CCTV Camera
DVR
24 CH DVR with 8 Audio (Model : 1024V) & 32 CH DVR with 8 Audio (Model :
1032V)
|
Technical Specification :
|
|
24/32 CH real time H.264 DVR
|
|
High Performance DVR
|
|
|
|
H.264 compression format
|
|
Mobile monitoring
|
|
Multi-languages supported
|
|
support NTSC/PAL video system
|
|
24/32 CH video inputs, 1CH monitor output, 2CH spot monitor output, 1CH VGA output(1208*1024)
|
|
8CH audio inputs, 1CH audio output
|
|
High quality image, brightness, contrast, sharpness and color adjustable for each
channel Support video sequence display
|
|
Display modes: PIP, FULL, QUAD, 8 SPLIT, 9/16 /32SPLIT
|
|
Recording modes: always recording, manual recording, schedule recording, sensor
recording and motion
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
H.264 Economy Real Time DVR
(Model
: ZSV-3204E/3208E )
|
Feature
|
|
3G & H.264 Baseline
|
|
Multiplex & Digital zoom
|
|
Support1 SATA up to 2 TB HDD
|
|
Audio 4CH In/1CH Out
|
|
VGA & TV output
|
|
No Static IP required
|
|
Dual Streaming
|
|
Mobile Phone Support
|
|
|
Technical Specification
|
|
Model
|
ZSV-3204E
|
ZSV-3208E
|
Compression format
|
Standard H.264 Baseline
|
Standard H.264 Baseline
|
Video Input
|
4CH
|
8CH
|
Video Output
|
Mainout*1, VGA*1
|
Mainout*1, VGA*1
|
Record Resolution
|
4CH D1-Realtime
|
CIF Real Time Real Time D1 Supported
|
Frame Rate Dispaly
|
100fps(PAL)
120fps(NTSC)
|
200fps(PAL)
240fps(NTSC)
|
Frame Rate Record
|
100/25fps(PAL)
120fps(NTSC)
|
200/50fps(PAL)
240/60fps(NTSC)
|
Frame Rate Playback
|
100/25fps(PAL),
120/30fps(NTSC)
|
200/50fps(PAL)
240/60fps(NTSC)
|
Audio Input
|
4CH
|
4CH
|
Audio Output
|
|
1CH
|
Digital Zoom
|
Yes
|
Yes
|
Network Playback
|
Yes
|
Yes
|
Recording Mode
|
Manual,Time,Motion,
Sensor,Alarms
|
Manual,Time,Motion,
Sensor,Alarms
|
Pentaplex
|
Preview,Record,Playback,
Backup,Remote Access
|
Preview,Record,Playback,
Backup,Remote Access
|
Network Interface
|
RJ45 10M/100M/1000M Ethernet
|
RJ45 10M/100M/1000M
Ethernet
|
PTZ
|
Yes
|
Yes
|
IR Controller
|
Yes
|
Yes
|
Communication Interface
|
RS485,USB2.0 x 2
|
RS485,USB2.0 x 2
|
HDD
|
SATA X 1 (upto 2TB)
|
SATA X 1 (upto 2TB)
|
Power Supply
|
12V DC
|
12V DC
|
Working Temp/Humidity
|
-10C°~50C°/10% ~90 ~
|
-10c~50c/10% ~90 ~
|
|
|
|
H.264 Economy Real Time DVR
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
D1 Series Network DVR ( Model : ZDR-8204AV)
|
Main Features |
|
Full D1Resolution 704x576 (Other DVR have CIF resolution 360X288) |
|
Zoom Function for any camera in Live and Playback Other DVR do not have |
|
Three USB Ports a.) Mouse, b.) Pen Drive, c.) USB DVD Writer |
|
Four Audio can be transmit on LAN/WAN |
|
Playback 1-4 channel |
|
Support, Windows , I-phone, black berry , android, mobile phone |
|
Support CMS Software |
|
Support 1 Hard Disk up to 2 TB each |
|
|
|
|
Specifications |
|
System |
Format |
H.264 main profile |
Master processor |
Technical grade embedded micro controller |
O.S. |
Embedded Linux operation |
System resources |
Multichannel real-time recording, playback, multi users network ops,
simultaneously. USB backup output |
Interface |
Operation interface |
16bit true color graphical operation interface, support mouse operation |
Picture display |
1/4 frame |
Video |
Video standard |
PAL (625TVLine, 50fps); NTSC (525TVLine,60fps) |
Monitoring quality |
PAL, D1 (704x576); NTSC, D1 (704x480) |
Playback quality |
PAL, 100fps, CIF (352x288); NTSC, 120fps, CIF (352x240)
PAL, 100fps, D1 (704×576); NTSC, 120fps (704×480), D1 |
Code capacity |
PAL, CIF (352x288); NTSC, CIF (352x240)(real-time)
PAL,D1 (704×576);NTSC,D1 (704×480) (real-time) |
Motion detection |
396(22x18) surveyed area can be set in everyone frame; Multilevel sensitivity
can be set |
Audio |
Audio compression |
G711A |
VoIP |
Yes |
Recording and playback
|
Recording mode |
Manual/alarm/motion detection/timing |
Local playback |
Single channel, multi channel (max 4 channel simultaneously) |
Recording search |
Time point, calendar, event, channel |
Storage and back up |
Occupation/ch |
Audio: 28.8Mbyte/ hour + video: 25~450Mbyte/hour |
Record storage |
Local HDD, and network |
Backup mode |
Network, USB HDD, USB DVD-R/RW |
Interface |
Video input |
4 channel BNC |
Video output |
1channel BNC, 1.0Vp-p, 75 ohm, 1channel VGA output |
SD card |
No |
Audio input |
4channel RCA, 200-2800mV, 30K ohm |
Audio output |
1channel RCA, 200-3000mV, 5K ohm |
Alarm input |
1ch |
Alarm output |
1ch |
Network |
RJ45 10M/100M self-adapting Ethernet port, I.E. viewing, and supports Windows
mobile, Symbian, iPhone and Black Berry and Google cell phone viewing; also
Central Management System (CMS) |
PTZ |
1 x RS485 |
USB |
2 x USB interface |
HDD |
1 x SATA supports 2TB |
Others |
Power |
12V/4.15A external adaptor |
Dissipation |
<10W(w/o HDD) |
Working temperature |
0 degree +- 55 degree |
Working humidity |
10% -90 % |
Dimension |
Color box: 365*325*110mm,
DVR: 310*215*45 mm
Carton: 580*380*340mm, 5pcs/carton |
Weight |
2.5KG/carton |
Support language |
S. Chinese, T. Chinese, English, French, Portugal, Russia, Italian, Spanish,
Thai, Greek, Japanese, German, Turkish, Polski, Finnish and Farsi. |
|
|
|
D1 Series Network DVR |
|
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
KT7316
16channel ( Model : H.264 DVR)
|
Feature
|
|
Adopts the standard H.264 compression technology, support 16channel recording,
Network transmission, and playback simultaneously |
|
Support multiplex operation: live, record, playback, backup, network
transmission, mobile phone surveillance |
|
Support backup with USB Flash Disk, Movable hard disk, USB writer, Network |
|
Support 1channel main output, 1channel SPOT output, 1channel VGA output, 1
Channel HDMI output |
|
Support mobile phone surveillance (Win CE/Symbain/iPhone/Blackberry) |
|
Support PTZ preset and Cruise Control |
|
Support Multi-language OSD |
|
Central management software and Networked system management |
 |
Support mouse, remote controller, panel operating |
|
|
|
|
Product Specifications |
|
Main Function |
Descriptions |
Operation System
|
Embedded Linux OS |
Video Compression |
Main profile H.264 |
Video Input |
16channel BNC |
Video Output
|
1channel BNC,1channel SPOT,1channel VGA(1280*1024),1 channel HDMI(1920*1080P) |
Audio Input/Output |
16 channels RCA/1channel RCA |
Display Picture Division |
1/4/8/16CH |
Multiplex operation |
Live,Record,Network,,Playback,Backup |
Display Resolution
|
PAL:D1(704*576),NTSC:D1(704*480) |
Recording Modes |
Timer, Manual, Motion Detection, Remote |
Total Recording Resource
|
PAL:D1@100fps,HD1@200fps,CIF@400fps NTSC:D1@120fps,HD1@240fps,CIFQ@480fps |
Recording Quality |
Single channel adjustable |
Recording Resolution
|
PAL: D1(704*576),HD1(704*288), CIF(352*288)
NTSC: D1(704*480),HD1(704*240), CIF(352*240) |
Playback
|
1ch/4ch/8ch/16ch simultaneously(playback channel option) |
Backup |
USB Flash disk ,Movable hard disk,DVD- Writer ,Network |
Alarm Input/Output |
16 channels input /4 channels output |
Alarm- action |
Support |
SPOT Alarm Pop-up |
Support |
PTZ
|
Supports PTZ preset ,Cruise and Control PTZ via PC |
PTZ protocol |
PELCO-D,PELCO-P |
|
|
|
16channel H.264 DVR |
|
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
D1 Series Network DVR ( Model : ZDR-8816AV-N)
|
Main Features |
|
Real time Playback 16Ch Video/4 Audio DVR |
|
Audio can be transmit on LAN/WAN |
|
Playback 1-4-9-16 channel |
|
Support, Windows , I-phone, black berry , android, mobile phone |
|
Support CMS Software |
|
Support 2 Hard Disk up to 1.5 TB each |
|
|
|
|
D1 Series Network DVR |
|
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
Standalone DVR (Model : ZDR-J8000 )
ZDR-J8000 are a series of high cost-performance video and audio standalone DVRs, including 4 channels, 8 channels and 16 channels. ZDR-J8000 uses H.264 compression standard and embedded Linux O/S, and keeps Capturing and Compression Video and Audio, Network Transmission, Remote Management, PTZ Control, Motion Detection, Alarm Management and Mobile Viewing functions. JVS-D8000 includes all functions of DVR (Digital Video Recorder) and DVS (Digital Video Server). |
ZDR-J8000 uses CloudSEE technology for network transmission. No need to apply for dynamic domain and set the port mapped of router. The biggest advantages are easy operation, high connection rate and good transmission effect. |
Zenex pays attention to stability and hommization while designing ZDR-J8000 series standalone DVR. ZDR-J8000 supports multi-level thunder-proof protection, Data self-repairing, Update online, Set Automatically, Search host-end automatically. |
Main Features |
|
Support Snapshot and Snapshot Management |
|
Support System log and Search |
|
Set the rights of local users and network users |
|
Enable temporary user if forget login password |
|
Support Mobile Viewing |
|
Support Audio talk between host-end and client-end |
|
Support software update (USB Device, FTP and Website) |
|
|
|
|
|
|
ZDR-J8000 Standalone DVR |
|
|
|
|
Note : Designs and Specifications are subject to change without notice. |
|
Warranty : 365 Days |
www.zenexsecurity.com |
|
|
|
High Performance Network DVR ( Model : 4 CH (ST-40), 8 CH (ST-82), 16 CH (ST-162))
|
|
|
High Performance Network DVR |
|
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
UNIQUE FEATURES OF ST SERIES DIGITAL VIDEO RECORDER
|
Main Features |
|
Optimized compression |
|
Live configuration |
|
Video recording |
|
Motion detection function |
|
Search recording |
|
Four Channel playback |
|
P.T.Z. control |
|
Alarm function |
|
Safety protection |
|
Backup |
|
HARD DISK DRIVE |
|
REMOTE ACCESS |
|
|
|
|
UNIQUE FEATURES OF ST SERIES DIGITAL VIDEO RECORDER |
|
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
4channel D1 DVR (Model : ZKT-7204AD)
|
Main Features |
|
Adopts the standard Main profile H.264 compression technology,D1 and CIF can be adjusted, supports 4ch recording,
Network transmission, and playback simultaneously |
|
Support dual-stream transmission for all channels |
|
Support Multiplex operation: live, record, playback, backup, network transmission, mobile phone surveillance |
|
Support backup with USB Flash Disk, Movable hard discus writer, Network |
|
Support 1channel. Main output, 1channel. VGA output |
|
Support video channel hidden and S.E.Q for single channel |
|
Support Digital Zoom and PIP preview |
|
Support password watermark function to avoid data modification |
|
|
|
|
|
|
ZKT-7204AD
4channel D1 DVR |
|
|
|
|
Note : Designs and Specifications are subject to change without notice.
|
|
Warranty : 365 Days
|
www.zenexsecurity.com
|
|
|
|
NVR
Will be available soon...

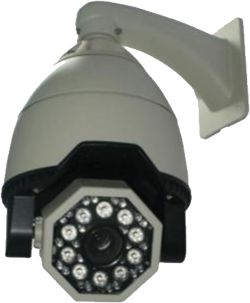

Speed dome
Access Control & Time Attendance
Proximity Card based Access Control Unit (Model :E203)
E203 is an access control devices introduced by Zenex Security, which is made
with elegant design and professional surface treatment. The device have lock
control, alarm, exit button, door sensor. The wiegand-in interface is used to
connect external reader to construct master and slave system. Also the device
can be used to connect with a control panel as a reader by wiegand-out
interface. The operation can be done on the device through LCD display, also can
be done on PC software and upload to the device through TCP/IP, RS232/485
communication. The USB-host is used for data download and upload, including user
template and record etc. E203 is suitable for house, small office and factory
etc. |
|
|
Features :-
|
|
Tough casing design |
|
Easy installation, safe and reliable |
|
Simple and convenient operation method |
|
ID card standard, Mifare card optional |
|
Full door lock control system |
|
Wiegand out to connect with control panel |
|
Wiegand in to construct master and slave system |
|
Audio prompt and LED feedback guide the user to operate |
|
|
|
|
Specifications :
|
ID card Capacity |
10000 |
Transaction Capacity |
50000 |
Communication |
TCP/IP, RS232/485, USB |
Access Control Interface for |
3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Wiegand Signal |
Output & Input |
Optional Functions |
Mifare, HID |
Display |
LCD |
Power Supply |
12V DC |
Operating Temperature |
0 °C- 45 °C |
Operating Humidity |
20%-80% |
Dimension(L*W*H)mm |
12V DC |
Gross Weight |
0.7KG |
|
|
|
 |
Proximity Card based Access Control Unit |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Proximity Card Reader cum Access control (Model : E300)
E203 is an access control devices introduced by Zenex Security, which is made
with elegant design and professional surface treatment. The device have lock
control, alarm, exit button, door sensor. The wiegand-in interface is used to
connect external reader to construct master and slave system. Also the device
can be used to connect with a control panel as a reader by wiegand-out
interface. The operation can be done on the device through LCD display, also can
be done on PC software and upload to the device through TCP/IP, RS232/485
communication. The USB-host is used for data download and upload, including user
template and record etc. E203 is suitable for house, small office and factory
etc. |
|
|
Features :-
|
|
For Single Door |
|
Capability: 2000 pcs user cards, 100 sets user code, 1pcs Install card, 1pcs
delete card, 1 setMaster code. unlock mode,card or code/card+code. |
|
Support the electric lock with feature of power to lock orpower to unlock |
|
voltage/current 12volt DC/100MA |
|
Support enter time delay/door situation monitoring |
|
Support users'data copy, support user card 4 short code management support
external Wigand 26 reader/345 uh inductor coil/doorbell/alarm/door magnetic
contact/exit push |
|
|
|
|
|
|
|
 |
Proximity Card Reader cum Access control |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Proximity Card Reader (Model : AV100)
Introduction: |
AV100E: 125KHz Proximity card reader
AV100M: 13.56MHz Mifare card reader |
|
Features :-
|
|
125KHz Proximity /13.56MHz Mifare Card Reader |
|
Read Range: Up to 10CM(125KHz)/5CM(13.56MHz) |
|
26/34bit Wiegand (default) |
|
External LED Control |
|
External Buzzer Control |
|
Indoor / Outdoor Operation |
 |
Solid Epoxy Potted |
 |
Waterproof IP65 |
 |
Reverse Polarity Protection |
|
Technical Specifications |
Model |
AV100E |
AV100M |
Read Range |
Up to 10CM |
Up to 5CM |
Reading Time (Card) |
≤300ms |
Power / Current |
DC 6-14V / Max.70mA |
Input Port |
2ea (External LED Control, External Buzzer Control) |
Output Format |
26bit Wiegand (default) |
LED Indicator |
2 Color LED Indicators(Red and Green) |
Beeper |
Yes |
Operating Temperature |
20° to +65°C |
Operating Humidity |
10% to 90% relative humidity non-condensing |
Color |
Black |
Material |
ABS+PC with texture |
Dimension(W x H x T)mm |
116*75*17.3 |
Weight |
120g |
Index of Protection |
IP65 |
|
|
|
 |
Proximity Card Reader |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Card based Time & Attendance system (model : E200)
Product Description: |
E200 Good exterior, LCD with four lines display, digital keyboard very
convenient to input numbers. Its transaction storage can reach 30000 records;
can be hung on the wall; developed on the basis of LINUX platform. |
|
Benefits :-
|
|
Built in 32bits RISC CPU |
|
Built in embedded standalone module |
|
Embedded LINUX SERVER browser |
|
Built in multi-language interface |
|
The public and private short Massage that can be sent to defined person |
|
Technical Specifications |
Size |
190(L)*136(W)*36(H) mm |
Operation platform |
LINUX |
Identification time |
<1 second |
Register and the way of comparation |
ID card (EM compatible card) serial number |
Register capacity |
10000 |
Record capacity |
30000 |
Way of communication |
RS232/RS485 TCP/IP |
Temperature operating |
0°C - 45°C |
Humidity operating |
10% - 80% |
Standard Function |
Work code, function key, Schedular bell |
Optional |
simple access control(with C1 controller), backup supply, Modem, Printer |
Support language |
English |
|
|
Enterprise Software can make |
 |
Attendance Report |
 |
Time Attendance report |
 |
Lateness Report |
 |
Overtime Report |
 |
Overnight report |
 |
Leave Report |
 |
Absence report |
 |
Exception report |
 |
Shift roster report |
 |
Clocking reporting |
 |
Staff not working report |
 |
Staff not clocking report |
|
|
|
 |
Card based Time & Attendance system |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Standalone Fingerprint Time and attendance System ( model : F6C)
Product Description: |
F6-C is an innovative biometric fingerprint reader for Time & Attendance
applications, offering unparalleled performance using an advanced algorithm for
reliability, precision and excellent matching speed. The F6-C features the
fastest commercial-based fingerprint matching algorithm and high-performance,
high-image quality optical fingerprint sensor. The 3” TFT can display more
information vividly, including fingerprint image quality and verification result
etc. TCP/IP communication is standard and make sure the data transmission
between terminal and PC can be easily done within several seconds. |
|
Features :-
|
|
Color TFT screen with GUI Interface for ease of use |
|
Optical Sensor |
|
1 touch a-second user recognition |
|
Stores 3,000 templates and 100,000 transactions |
|
Reads Fingerprint and/or PINs |
 |
Optional integrated proximity or smart card reader |
 |
Built-in Serial and Ethernet ports |
 |
Built-in USB port optional, allows for manual data transfer when network isn't
available |
 |
Multi Language Support |
 |
Built in bell scheduling |
 |
Real-time 1-touch data export 3rd party hosted & non-hosted applications |
 |
Audio-Visual indications for acceptance and rejection of valid/invalid fingers |
 |
SDK available for OEM customers and software developers |
|
Technical Specifications |
Vibrant Colour |
TFT |
Size |
216(L) X144 (W) X46(H) mm |
User Capacity |
3000 , Transaction Storage: 100000 |
Algorithm version |
9/10 Algorithm |
Communications |
RS232, RS485, TCP/IP (UDP Protocol) |
Door Control |
5V 2A |
Identification time |
<=2S |
FAR |
<=0.0001% , FRR: <=1% |
Operating Temperature |
0°C-45°C |
Operating Humidity |
20%-80% |
Optional |
RFID Card Reader (Rs.1000 extra) |
Dimension |
200X145X58 mm |
Gross Weight |
1.05 kg |
|
|
|
|
 |
Standalone Fingerprint Time and attendance System |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
F9 Fingerprint Attendance System
( Model : F9 )
Product Description: |
F9 is a standalone fingerprint T&A System, IN and OUT status, also most economy
price with good performance, designed specially in the purpose of popularizing
the fingerprint products. It could store 1500 fingerprint templates and 30000
transaction records. It will bring you many profits because of its low price. |
|
|
Technical Specifications |
User Capacity |
1500 |
Transaction Storage |
30000 |
Communications |
RS232 ,RS485, TCP/IP, USB |
Identification time |
< =2S |
FAR |
<=0.0001% |
FRR |
<=1% |
Operating Temperature |
0C - 45C |
Operating Humidity |
20%-80% |
Sensor |
OEM Optical Sensor 500 DPI |
Optional |
EM RFID(Proximity) Card reader |
Language |
English |
|
|
|
|
 |
Fingerprint Attendance System |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Fingerprint Reader (Model : F12)
Product Description: |
ZENEX is leader in Biometric solution, In a world of digital revolution, where
the technology is reaching out and touching our lives in almost every sphere,
ZENEX has emerged as a leading supplier of end-to-end solutions for the
technology platforms of Smart Cards, Biometrics, Radio Frequency Identification
and IP Surveillance. ZENEX innovative and most outstanding biometric solutions
for corporate and organizations across the system |
|
KEY FEATURES |
Data transfer TCP/IP , 1,000 FP ,Very fast Identity system, Scratch less & dust
free Sensor, Colour screen, supports SD card, Battery backup (Optional) , Easy
to use T & A software , SDK available, CE & ROHS certified. |
|
|
Technical Specifications |
User Capacity |
1,000 |
Transaction Storage |
52,000 |
VERIFICATION MODE |
1:1 , 1:N |
FAR |
<.0001% |
FRR |
<.01% |
STAFF ID |
5 DIGITS |
STAFF NAME |
8 DIGITS |
Communication |
TCP/IP, Wigand, USB |
Optional Function |
Id or Ic Card reading, Battery back up |
POWER SUPPLLY |
9 V 1 Amp |
Optional |
Proximity card reader, Battery Backup, Card + Battery |
SENSOR |
Scratch less ,Dust free |
SHOW |
Time, ID, NO, Name |
Working Mode |
Finger Print , Password, Card |
|
|
|
|
 |
Fingerprint Reader |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Fingerprint Access Control and T&A ( Model : F20)
Product Description: |
ZENEX is leader in Biometric solution, In a world of digital revolution, where
the technology is reaching out and touching our lives in almost every sphere,
ZENEX has emerged as a leading supplier of end-to-end solutions for the
technology platforms of Smart Cards, Biometrics, Radio Frequency Identification
and IP Surveillance. ZENEX innovative and most outstanding biometric solutions
for corporate and organizations across the system |
|
Advantages |
1-
Strictly follow the national security product standard. Suitable for the
entrances and exits of apartment, multi-family houses, office, factory, hotel, school, etc.
2- TCP/IP + RS485 Communication + USB Flash Drive Up/Download.
3- Anti-dismantlement alarm, threatens alarm, unlock illegally alarm, not block alarm are available.
4- Fingerprint / Card / Password / FP + Card / FP + Password / Card + Password / FP + Card + Password identification modes are all available.
|
|
|
|
Technical Specifications |
Model |
ZD2F20 |
LCD Resolution |
128*64 |
Fingerprint Sensor Resolution |
500DPI |
Rotational Angle |
Total Rotational Angle |
FRR |
≤0.1% |
FAR |
≤0.0001% |
Identification Time |
≤0.1 S |
Query Record |
Available |
Real Time Fingerprint Picture Display |
Available |
Operating Mode |
Off-line/On-line |
Authentication Mode |
1:1、1:N |
Identification Mode |
Fingerprint/ID Card/Password |
Fingerprint Capacity |
2,000 |
Working Mode |
Finger Print , Password, Card |
Log Capacity |
50,000 events |
Communication |
TCP/IP, RS485 |
U disk up/download |
Available |
Language |
Chinese, English, Korean |
Voice prompt |
Available |
Capacity notification |
Alarm when log capacity is full |
Bell |
Built-in timing bell |
Lock Output |
Normal Open / Normal Closed |
Door Open Button |
Can connect the common button, or the wireless remote controlled button |
Doorbell Output |
Can connect the doorbell in every voltages |
Access Control Interface |
Wiegand 26/34 Optional, Input/ Output Optional |
Anti-passback |
Available |
Alarm |
Threatens Alarm, Anti-dismantlement Alarm, Unlock Illegally Alarm, Circumscribed
Alarm, Time-out Alarm |
Power |
DC 12V/1A |
Operating environment |
Operating Temp: 0℃-50℃, Humidity:80% |
Size of the Terminal |
181(L)*91(W)*36(H)mm |
|
|
|
|
 |
Fingerprint Access Control and T&A |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without noticee |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Fingerprint Reader cum Access control ( Model : ZAC300 )
Product Description: |
ZENEX is leader in Biometric solution, In a world of digital revolution, where
the technology is reaching out and touching our lives in almost every sphere,
ZENEX has emerged as a leading supplier of end-to-end solutions for the
technology platforms of Smart Cards, Biometrics, Radio Frequency Identification
and IP Surveillance. ZENEX innovative and most outstanding biometric solutions
for corporate and organizations across the system |
|
KEY FEATURES |
Dedicated access control system, external Proximity card (WG26) can be attached
for exit use , Data transfer TCP/IP , 3,000 users , Very fast Identity system,
Scratch less & dust free Sensor, Time Zone facility-Specific time zone for door
open can be set for specific user , Access Control 50 time zones,5 time groups,
10 opening combinations, tamper alarm, exit button, bell button embedded, Door
sensor etc, Easy to use T & A software , SDK available, CE & ROHS certified. |
|
|
Technical Specifications |
User Capacity |
3,000 |
Transaction Storage |
80,000 |
VERIFICATION MODE |
1:1 , 1:N |
FAR |
<.0001% |
FRR |
<.01% |
STAFF ID |
5 DIGITS |
STAFF NAME |
8 DIGITS |
Communication |
TCP/IP,RS232/485, |
SENSOR |
Scratch less ,Dust free |
POWER SUPPLLY |
12 V 1 Amp |
SHOW |
Time, ID, NO, Name |
Working Mode |
Finger Print , Password, Card |
Machine size (L*W*H mm) |
130*88*38 |
|
|
|
|
 |
Fingerprint Reader cum Access control |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Fingerprint Time Attendance ( Model : BlaZD30SD )
Product Description: |
ZENEX is leader in Biometric solution, In a world of digital revolution, where
the technology is reaching out and touching our lives in almost every sphere,
ZENEX has emerged as a leading supplier of end-to-end solutions for the
technology platforms of Smart Cards, Biometrics, Radio Frequency Identification
and IP Surveillance. ZENEX innovative and most outstanding biometric solutions
for corporate and organizations across the system |
|
Advantages |
1. Strictly follow the national security product standard. Suitable for the
entrances and exits of office, factory, hotel, school, etc.
2. Easy to learn, once enroll the fingerprint, you can share it on other Realand
terminals.
3. SD Card Up/Download + USB Communication.
4. The RIMS (Realand Information Management System)is improving unceasingly and
the customers are free to the upgrade ones. |
|
|
Technical Specifications |
Model |
ZDC30 |
LCD Resolution |
128*64 |
Fingerprint Sensor Resolution |
500DPI |
Operating System |
Built-in firmware program |
Fingerprint Capacity |
2,000 |
Log Capacity |
50,000 events |
Communication |
USB |
Identification Mode |
Fingerprint |
SD Card Download |
Available |
Rotational Angle |
Total Rotational Angle |
Identification Time |
≤1s |
FRR |
≤0.1% |
FAR |
≤0.0001% |
Operating Mode |
Off-line / Online |
Authentication Mode |
1:1, 1:N |
Language |
Chinese,English,Korean |
Voice Prompt |
Available |
Bell |
Built-in Timing Bell |
Self Test |
Available |
Power Adapter |
DC 12V/1A |
Operating Environment |
Operating Temp:0℃ ~ +50℃, Humidity(RH):20%~80% |
Size of the Terminal |
180(L) × 134(W) × 36(H) mm |
|
|
|
|
 |
Fingerprint Time Attendance |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
TFT Fingerprint Time Attendance (
Model : ZDC80 / ZDC80T )
Product Description: |
ZENEX is leader in Biometric solution, In a world of digital revolution, where
the technology is reaching out and touching our lives in almost every sphere,
ZENEX has emerged as a leading supplier of end-to-end solutions for the
technology platforms of Smart Cards, Biometrics, Radio Frequency Identification
and IP Surveillance. ZENEX innovative and most outstanding biometric solutions
for corporate and organizations across the system |
|
Advantages |
1. Strictly follow the national security product standard. Suitable for the
entrances and exits of office, factory, hotel, school, etc.
2. Adopting the Energy-saving fingerprint sensor and power management function,
makes the product perfect.
3. Easy to learn, once enroll the fingerprint, you can share it on other Realand
terminals.
4. 2.8 inch TFT screen.
5. USB Flash Drive Download + USB Communication + TCP/IP (ZDC80T).
6. Fingerprint + Password + ID Card.
7. The RIMS (Realand Information Management System)is improving unceasingly and
the customers are free to the upgrade ones. |
|
|
Technical Specifications |
Model |
ZDC80 |
ZDC80T |
TFT |
2.8 inch TFT (320*240) |
Fingerprint Sensor |
(Energy-saving)Optical Fingerprint Sensor (Resolution:500DPI) |
CPU |
32bit CPU |
Fingerprint Capacity |
1,000 |
Log Capacity |
100,000 events |
Communication |
USB |
USB, TCP/IP |
DHCP |
Unavailable |
Available |
Identification |
Fingerprint, Password, Proximity Card |
Proximity Card |
125Khz, EM4100 or other Compatible Contactless ID Card |
USB Flash Drive Up/Download |
Available |
Record Query |
Available(People can query their own attendance record after authentication) |
Rotational Angle |
Total Rotational Angle |
Identification Time |
≤1s |
FRR |
≤0.1% |
FAR |
≤0.0001% |
Operating Mode |
Off-line/Online |
Authentication Mode |
1:1, 1:N |
Language |
Chinese, English, Korean |
Voice Prompt |
Available |
Bell |
Built-in Timing Bell |
Self Test |
Available |
Power Management |
Auto Sleep Time, Auto Power Off Time |
Power Adapter |
DC 12V/1A |
Operating Environment |
Operating Temp:-10℃ ~ +60℃, Humidity RH):20%~80% |
Size of the Terminal |
190(L) × 135(W) × 37(H) mm |
|
|
|
|
 |
TFT Fingerprint Time Attendance |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
TFT Fingerprint Time Attendance (
Model : ZDC90 / ZDC90T )
Product Description: |
ZENEX is leader in Biometric solution, In a world of digital revolution, where
the technology is reaching out and touching our lives in almost every sphere,
ZENEX has emerged as a leading supplier of end-to-end solutions for the
technology platforms of Smart Cards, Biometrics, Radio Frequency Identification
and IP Surveillance. ZENEX innovative and most outstanding biometric solutions
for corporate and organizations across the system |
|
Advantages |
1. Strictly follow the national security product standard.Suitable for the
entrances and exits of office, factory, hotel, school, etc.
2. Adopting the Energy-saving fingerprint sensor and power management function,
makes the product perfect.
3. Easy to learn, once enroll the fingerprint, you can share it on other Realand
terminals.
4. 3.2 inch TFT screen.
5. USB Flash Drive Download + USB Communication + TCP/IP(ZDC90T).
6. Fingerprint + Password + ID Card.
7. The RIMS (Realand Information Management System)is improving unceasingly and
the customers are free to the upgrade ones. |
|
|
Technical Specifications |
Model |
ZDC90 |
ZDC90T |
TFT |
3.2 inch TFT (320*240) |
Fingerprint Sensor |
(Energy-saving)Optical Fingerprint Sensor (Resolution:500DPI) |
CPU |
32bit CPU |
Fingerprint Capacity |
1,000 |
Log Capacity |
100,000 events |
Communication |
USB |
USB, TCP/IP |
DHCP |
Unavailable |
Available |
Identification |
Fingerprint, Password, Proximity Card |
Proximity Card |
125Khz, EM4100 or other Compatible Contactless ID Card |
USB Flash Drive Up/Download |
Available |
Record Query |
Available(People can query their own attendance record after authentication) |
Rotational Angle |
Total Rotational Angle |
Identification Time |
≤1s |
FRR |
≤0.1% |
FAR |
≤0.0001% |
Operating Mode |
Off-line/Online |
Authentication Mode |
1:1, 1:N |
Language |
Chinese, English, Korean |
Voice Prompt |
Available |
Bell |
Built-in Timing Bell |
Self Test |
Available |
Power Management |
Auto Sleep Time, Auto Power Off Time |
Power Adapter |
DC 12V/1A |
Operating Environment |
Operating Temp:-10°C ~ +60°C, Humidity RH):20%~80% |
Size of the Terminal |
190(L) × 140(W) × 37(H) mm |
|
|
|
|
 |
TFT Fingerprint Time Attendance |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Standalone Fingerprint Time and attendance System (Model
: ZTK 100 )
Product Description: |
ZTK100 is an innovative biometric fingerprint reader for Time & Attendance
applications, offering unparalleled performance using an advanced algorithm for
reliability, precision and excellent matching speed with feather touch keypad.
The ZTK100 features the fastest commercial-based fingerprint matching algorithm
and high-performance, high-image quality optical fingerprint sensor. The 3 Inch
TFT can display more information vividly, including fingerprint image quality
and verification result etc. TCP/IP communication is standard and make sure the
data transmission between terminal and PC can be easily done within several
seconds. |
|
Features :-
|
|
Color TFT screen with GUI Interface for ease of use |
|
Optical Sensor |
|
Elegant Touch keypad |
|
1 touch a-second user recognition |
|
Stores 3,000 templates and 100,000 transactions |
 |
Reads Fingerprint and/or PINs |
 |
Optional integrated proximity or smart card reader |
 |
Built-in Serial and Ethernet ports |
 |
Built-in USB port allows for manual data transfer when network isn't available |
 |
Multi Language Support |
 |
Built in bell scheduling |
 |
Real-time 1-touch data export 3rd party hosted & non-hosted applications |
 |
Audio-Visual indications for acceptance and rejection of valid/invalid fingers |
 |
SDK available for OEM customers and software developers |
|
Technical Specifications |
Dimension(WxHxD) |
196.5 X 130.5 X 59 mm |
User Capacity |
3000 |
Transaction Storage |
1,00,000 |
Communications |
RS232 ,RS485, TCP/IP ,USB |
Identification time |
< =2S |
FAR |
<=0.0001% |
FRR |
<=1% Operating |
Temperature |
0°C - 45°C |
Operating Humidity |
20%-80% |
Sensor |
OEM Optical Sensor 500 DPI |
Card reader |
Mifare |
Power Supply |
5V DC 2A |
Algorithm Version |
Finger v9.0/10.0 |
Display |
3 Inch TFT Screen |
Gross Weight |
1.05 Kg |
Algorithm Version: |
9.0/10.0 |
Language |
English |
|
|
|
|
 |
Standalone Fingerprint Time and attendance System |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
USB Optical Sensor (model : FRM 301)
Product Description: |
Multispectral imaging from Lumidigm is a biometric technology that virtually
eliminates common real world performance problems experienced with conventional
fingerprint sensors. Robust and reliable, multispectral imaging allows Lumidigm
sensors to capture superior images quickly, on all people, in all environmental
conditions. The Mercury sensors incorporate this field-proven technology into a
reliable new platform with a new form factor that supports speedy transactions
with single-touch performance. |
|
|
Technical Specifications |
Resolution |
Up to 500 DPI |
Registration Speed |
< 0.5 Sec |
Communication Mode |
USB |
Fingerprint Sensor |
Optical Sensor |
Operating System |
Windows 2000 / XP / 2003 / Vista / 7 ,Linux 32 / 64 Bit (optional) |
Temperature |
0°C - 45°C |
Operating Humidity |
10%- 95% |
Power Supply |
5 VDC 400mA (peak) |
|
|
Application : Security for PCs and networks ,E-commerce
,Banking and financial system security |
|
 |
USB Optical Sensor |
|
|
|
|
|
|
Note : Designs and Specifications are subject to change without notice |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Intrusion Alarm
Mobile Jammer
Cell phone Jammer with Remote control (Model
: ZMJ-101B)
|
Technical Specification: |
Output Band |
Frequency Band |
Average Output Power |
Channel Output Power |
CDMA800 |
850-894MHz |
33dBm |
3 watt |
GSM900 |
925-960MHz |
33dBm |
3 watt |
DCS/GSM1800-1900 |
1805-1990MHz |
33dBm |
2 watt |
3G |
2110-2170MHz |
33dBm |
2 watt |
Total Power |
10 watt |
Rules of Installation |
UL (E190582) CSA (LR 112971 Level 3) |
Power Supply |
AC:110/220 V DC 5V, Electric Current: 6A |
Power Consumption |
1320 watt |
Shielding Radius |
Up to 40 meters, signal strength <= -75dBm, depends on the signal strength in
the given area |
Whole Weight |
2.8 KG |
Size |
21.5*17*5.5 CM |
Complete accessories |
Jammer, Omni antennas, Power adaptor, Remote control, Fixed Mounts |
Advantages and Features |
1. Smart cooling system, can work 24Hours / 7 days continuously. Non stop
cooling system.
2. GPS or WIFI frequency bands are optional.
3. With Remote control to turn on/off the jammer. |
Applications |
Meeting Room, Oil and Gas Storage Facilities and fields, Hospitals, Theatres,
Recording Studios, Banks, Contract Tendering Rooms, Churches, Conference Rooms,
Classrooms, Testing Facilities, Security Services, Military Units, Secret
Services, News Conference Rooms, Libraries, Museums, Prisons, Courts, Border
Patrol and Drug Enforcement, Customs, House. |
|
|
|
 |
Cell phone Jammer with Remote control |
|
|
|
|
|
|
Note : Designs and Specifications are
subject to change without notice. |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Mini Mobile Pocket Jammer (Model : ZMJ-P100)
Introducing the "new” Tri-Band Mini-Phone jammer the most sophisticated Digital
Cellular Mobile Phone Jammer off its class, a mobile device to help you keep
away from noise or disturbance of cellular phone calls. |
|
|
Features :-
|
|
Coolest and lowest priced jammer on the market. |
|
Portable, Small, Compact and Robust. |
|
To keep you away from noise or disturbance of unexpected cellular phone calls or
text messages (SMS). |
|
World wide compatible |
|
To paralyze cellular phone communication links within an effective area. |
|
No transmissions or receptions of cellular phone calls in coverage area. |
|
All specified frequency bands will be paralyzed simultaneously. |
|
The coverage area is a sphere area with its effective distance as a radius. |
 |
For use at meeting rooms, conference
rooms, museums, galleries, theatres, concert halls, churches, temples,
restaurants, classrooms, training centers, factories, banks, trains, buses etc |
 |
Easy to operate. No adjustment needed. |
|
Technical Specification: |
Jamming Area |
5 to 10 meters of indoor (Depends on signal strength, at the site to be jammed) |
Cellular Systems |
(CDMA): 800~895MHz
(GSM): 890~964MHz
(DCS.PHS): 1.700~2.000 GHz
GSM / CDMA / PCS / TDMA / DCS / AMPS / NMTP / Nextel |
Power Supply |
100-300VAC DC 12V@1.0A |
Dimension |
9.5cm(W) * 7cm(H) * 2cm(D) Weight |
Net weight |
202 gm |
Antenna |
Swivel type 360 degree rotary adjustment and 90 degree adjustment |
|
|
Important Note |
The jamming area is influenced by the
location of the cell tower and the obstacles between cell tower & the cellular
jammer.
It means that in normal condition if the distance is close between the cell
tower & the cellular Jammer, it will have very less jamming area. |
Note: Always connect
matching antennas before using the cell phone mobile jammer to avoid any damage. |
|
 |
Mini Mobile Pocket Jammer |
|
|
|
|
|
|
Note : Designs and Specifications are
subject to change without notice. |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Mobile Phone With WiFi/GPS Jammer With Remote control function
Mobile Phone With WiFi/GPS Jammer With Remote control function
This jammer can be used in location where is forbidden used mobile
phone and GPS/WiFi |
|
|
Features :-
|
|
The antenna and the connector |
|
Output power adjustment knob |
|
AC power connector |
|
Logo place |
|
LED light of each band |
|
Power LED light. |
|
Power switch |
|
Effective cooling system |
 |
Remote/Local function button |
|
|
|
Application |
Banks, Contract Tendering Rooms,
Churches, Conference Rooms, Classrooms, Testing Facilities, Security Services,
Military Units, Secret Services, News Conference Rooms, Libraries, Museums,
Prisons, Courts, Border Patrol and Drug Enforcement,Customs,Houses. |
|
|
 |
Mobile Phone With WiFi/GPS Jammer |
|
|
|
|
|
|
Note : Designs and Specifications are
subject to change without notice. |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
High Power waterproof prison jammer ( model : ZMJ - 101M A )
|
|
|
Specificationd |
Output Band |
Frequency Band |
Average Output Power |
Channel Output Power |
CDMA800 |
850-894MHz |
>=47dBm (70-75W) |
23dBm/30KHz (min) |
GSM900 |
925-960MHz |
>=47dBm (70-75W) |
21dBm/30KHz (min) |
DCS/GSM1800 |
1805-1880MHz |
47dBm ( >=50W) |
20dBm/30KHz (min) |
3G |
2110-2170MHz |
47dBm (50W) |
19dBm/30KHz (min) |
Total Power |
220W |
Frequency Bands |
Frequency bands as required |
Control |
Each bands can work independently
Each bands’ output power is adjustable |
Power Supply |
AC220V/ 110V DC27-28V |
Power Consumption |
1000W |
Shielding Range |
200-500 meters
(Depends on the signal strength at the application place.) |
Main body Weight |
30 KG |
Total System weight |
85 Kg |
Size |
72*45*32cm |
Complete accessories |
1) HF connection cable – 4 p
2) Power cable – 1 p
3) High Gain External directional antenna – 2 p
4) Safety key- 2 p |
Lead time |
In 30-40 days ASAP |
Advantages and Features |
1. Each unit can jam up to five frequency bands simultaneously.
2. Continuous operation, even in hot climates, with no time limit.
3. Secure design to avoid sabotage.
4. Adjustable RF power output level.
5. Turn-key design to check the system problem in time.
6. Selection of antennas to provide more flexibility regarding jamming coverage.
7. Special additional housing for all weather protection.
8. Good cooling system via fans design.
9. Heat sink design to make the system more stable.
10. Module design .Easy to change and repair.
11. Wave filters design to make the jammer only to block the downlink frequency
bands , not to the uplink. |
Applications |
Especially for prisons and other large sensitive locations such as military or
governmental compounds. It can also use in Oil and Gas Storage Facilities and
fields, Security Services, Military Units, Secret Services, Museums, Border
Patrol and Drug Enforcement, Customs, etc. |
|
|
|
 |
High Power waterproof prison jammer |
|
|
|
|
|
|
Note : Designs and Specifications are
subject to change without notice. |
|
Warranty : 365 Days |
www.zenexsecurity.com
|
|
|
|
Search Light
|
